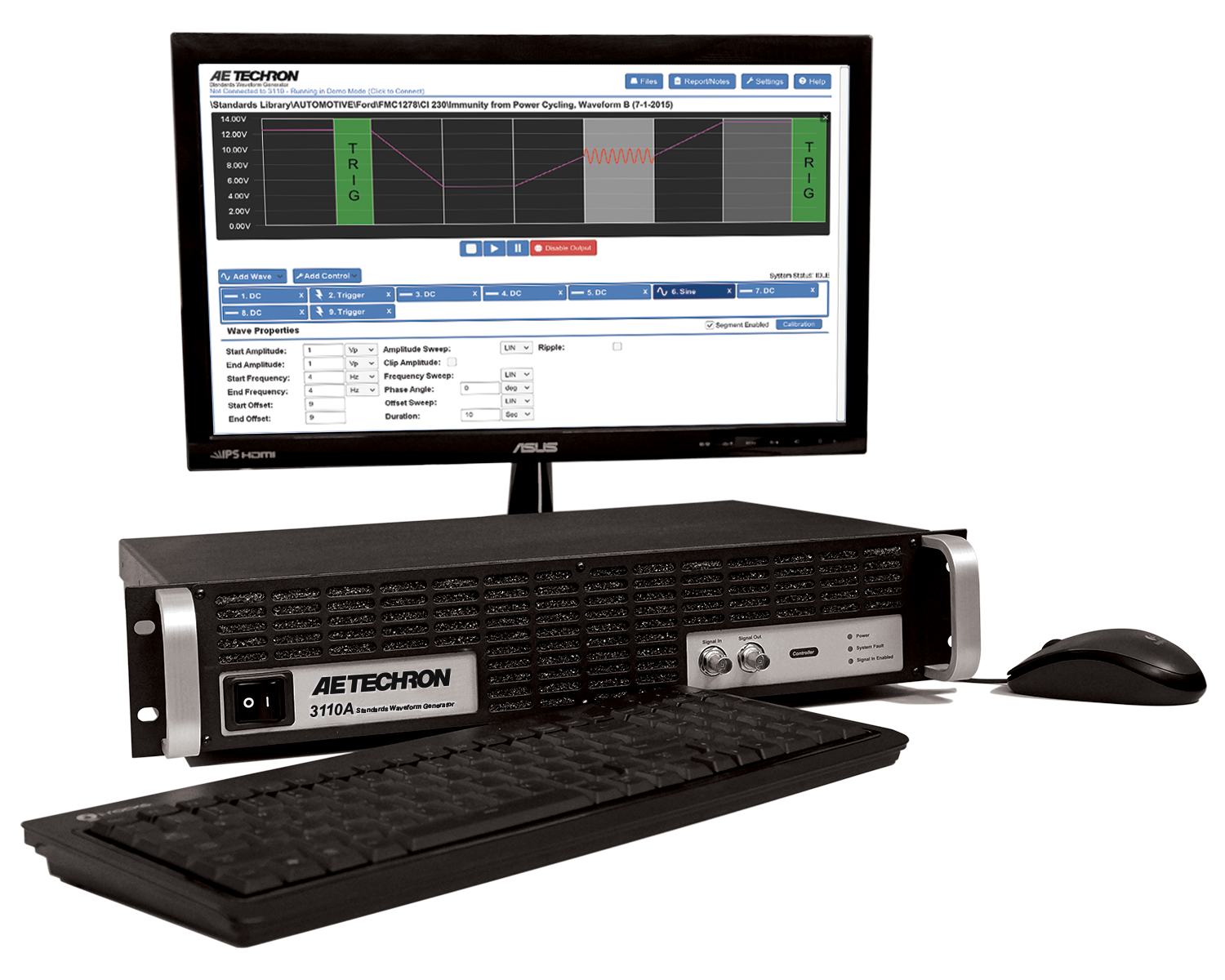

Standards Waveform Generator

Much faster!

• Rise times under 1 µs
• Pulse durations under 50 µs

Many new features!

• Easy test import from csv file
• Fast, per-step calibration
• Automatically create tests with non-linear or equation-driven frequency/voltage/duration increments
• Test sequence/parameter and notes reporting

Read more

DSR 100 Series

Dropout, Surge, Ripple Simulator
plus AC/DC Voltage Source

• ±80V DC supply for 12V to 48V systems; meets 80V surge requirements
• 300 kHz sine for DC ripple tests for all major standards
• 3 µs rise time - exceeds surge and dropout slew rate requirements dropout
• 3 mΩ DC source impedance - outperforms ISO 7637-2 requirements
• Four-quadrant - can source and sink current
• Models from 15A to 200A continuous output current available

Read more

7224 Linear Power Amplifier

Single-Phase, 2U Power Workhorse

• Up to 900 watts RMS power output
• Small signal response up to 400 kHz
• Up to 16A at 13.5 VDC
• Can be used to create series or parallel systems for up to 3 times the voltage or 4 time the current output
• Field-selectable controlled-voltage or controlled-current operation
• Can be switched between rail supply modes and voltage to optimize for various load impedances
• Protection circuits guard against over/under voltage, over current, over temperature, and circulating ground currents

Read more

7226 Linear Power Amplifier

Exceptional versatility and value

• Up to 2X the long-term power of the 7224 at frequencies above 40 kHz
• 90 V/µs slew rate
• Can be used to create series or parallel systems for up to 3 times the voltage or 4 time the current output
• Field-selectable controlled-voltage or controlled-current operation
• Can be switched between rail supply modes and voltage to optimize for various load impedances
• Protection circuits guard against over/under voltage, over current, over temperature, and circulating ground currents

Read more

7228 Linear Power Amplifier

Fast and easy configuration changes

• Changes to protection, connection type and modes of operation are accomplished quickly by changing back-panel DIP switches or via remote contact closure
• Provides user-selectable current limit, DC blocking and DC servo for transformer-based loads
• Series or Parallel systems can be configured using back-panel DIP switches or remote contact closure. Ballast resistors are not required for connecting multiple amps in parallel
• Up to 4X the long-term power of the 7224 at frequencies above 100 kHz

Read more

7794 Power Amplifier/Battery Simulator

Dependable high-current operation

• Stable when driving a wide range of resistive, inductive or capacitive loads
• 60 Ap continuous at 13.8 VDC
• 200 Ap in-rush current capability
• 150 kHz small signal bandwidth
• ±95 VDC capable
• 41 V/µs slew rate
• Four-quadrant operation (source and sink)

Read more
